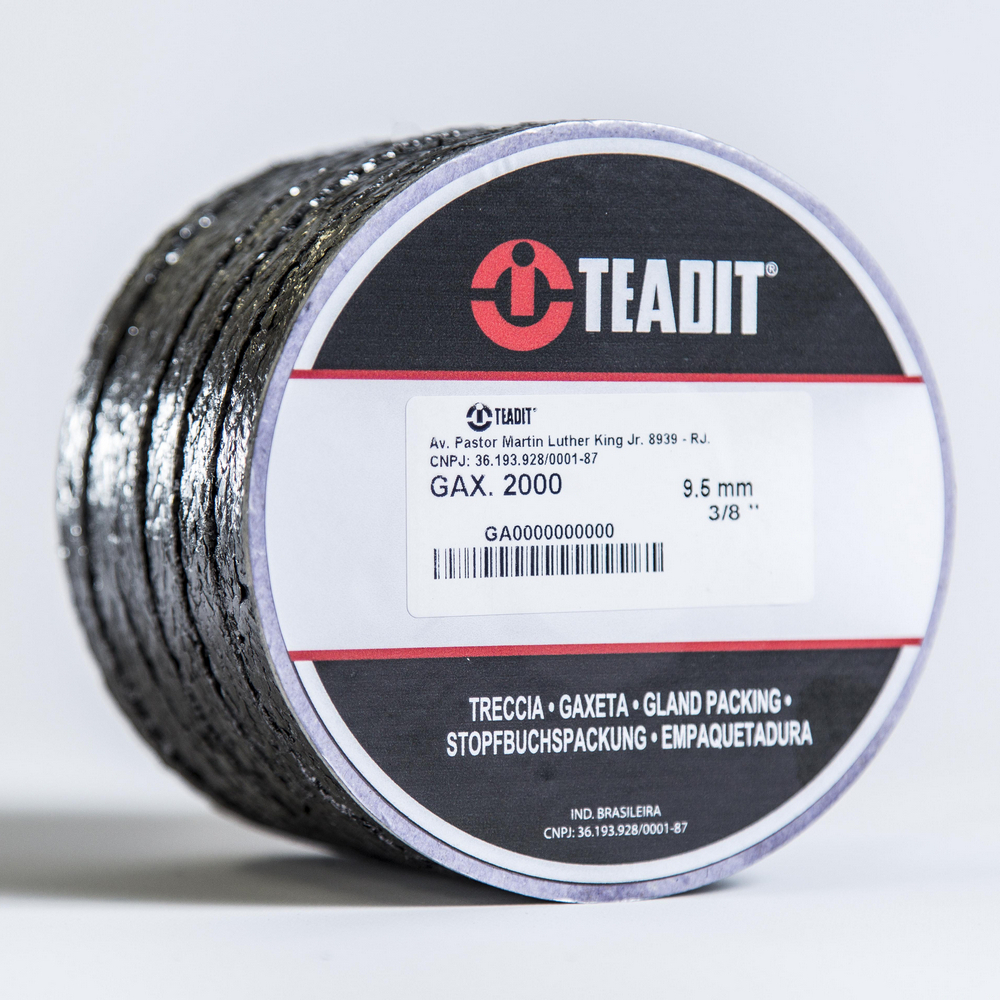

TEADIT Style 2000Diagonally braided construction of pure, expanded flexible graphite-yarn
Description and Applications
Diagonally braided construction of pure, expanded flexible graphite-tapes.
Properties
Very flexible and supple packing, good alternative to pre-formed graphite-rings. TEADIT style 2000 combines all the advantages of pure graphite rings with the flexibility, compressibility and ease of installation of a conventional packing; very low coefficient of friction and high thermal conductivity; extended shelf life, does not harden; chemically inert (pH 0-14) except with highly oxidizing agents.
Application areas
Rotary pumps and valves in power stations and boiler houses, in the petrochemical industry and many other industrial areas.
