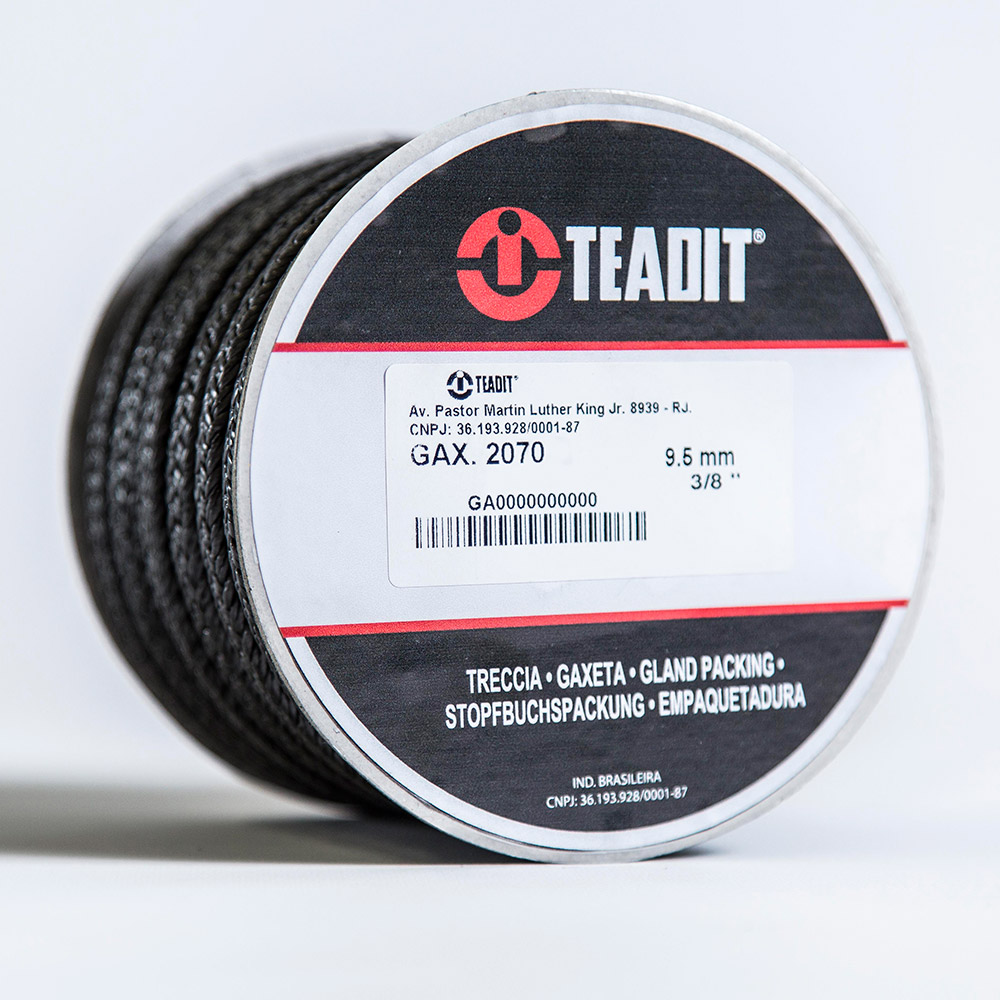

TEADIT Style 2070diagonally braided yarn which consists of a core of Aramid fibers totally encased PTFE yarn with incorporated graphite, lubricated with silicone oil

Description and Applications

TEADIT style 2070 is diagonally braided from a proprietory yarn which consists of a core of Aramid fibers totally encased by gPTFE (PTFE with incorporated graphite), lubricated with silicone oil.

Properties

The unique, patented TEADIT EGK® yarn gives this packing exceptional properties. Every single yarn owns the most desirable charactaristics: high mechanical strength from the Aramid core and the superior chemical resistance, self lubrication, low coefficient of friction and excellent heat dissipation from the external PTFE/graphite jacket. Chloride content < 20 ppm

Application areas

Style 2070 is an ideal packing for applications requiring highest chemical resistance and mechanical strength. It is recommended for rotating and reciprocating pumps, valves, mixers, agitators, etc., in the chemical, pharmaceutical and many other industries. TEADIT style 2070 is particularly suited for the demanding applications in refiners, digesters and similar equipment in the pulp and paper industry.
